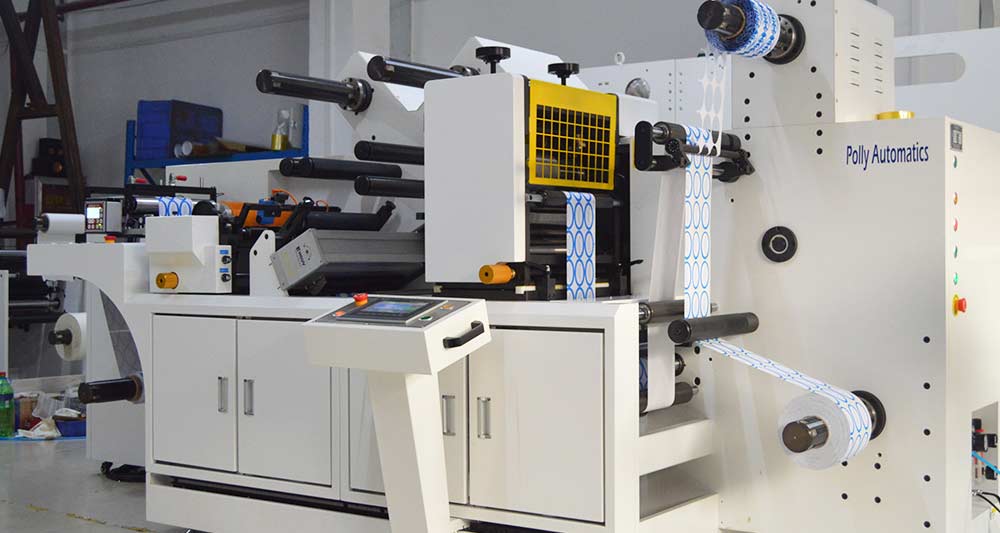

MS Series Multi-functional Post-Processing System

New type of petal-shaped flexographic printing mechanical structure, easy to operate.

Reserved UV long paper path coating installation station.

Can be used for printing, coating, varnishing, spot varnishing, cold foiling, and lamination.

Independent servo control, allowing for secondary printing.

Die-cutting three-roller independent wallboard module design.

Intermittent and full rotary fast exchange, with optional die-cutting inside the mold.

Precise and fast pre-registration operation.

Can be configured with a shear-type slitting unit.

1. Unwinding Unit

-Automatic Tension Control System

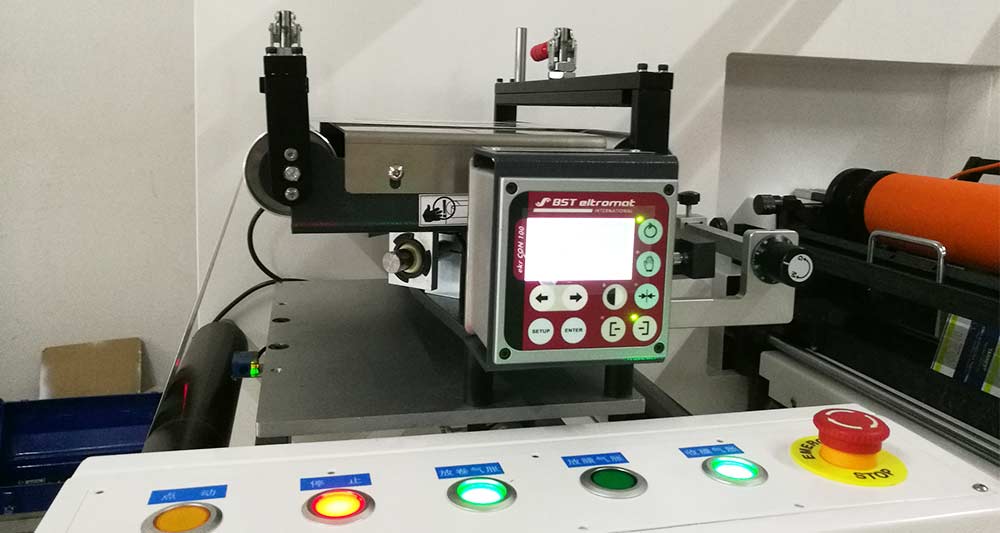

-Web Guide System

2. Flexographic Printing Unit

-Independent Servo Motor Direct Drive

-New Petal-Style Mechanical Structure, Easy to Operate

3. Push-Pull Touch Screen

4. Intermittent Die-Cutting Unit

-Independent Servo Motor Direct Drive

-Three-Roller Independent Wall Panel Module Design

5. Waste Removal Unit

6. Rewinding Unit

-Independent Motor Direct Drive

-Automatic Tension Control System

-Optional Features

7.Dust Removal and Corona Treatment

-Intermittent Flexo Printing Unit (Full Rotation/Intermittent Switchable)

-Optional Hot Air Drying System

-Optional Shear Cutting and Notching Blades

-Optional Collection Table (for Mold-In Label Die-Cutting)

-Optional Slitting Unit

-Optional Snowball Waste Removal System

Paper Width Range: 100mm - 340mm

Printing/Die-Cutting Width: 100mm - 330mm

Unwinding/Rewinding Shaft: 76’’ (3’’)

Max Unwinding Diameter: 700mm

Max Rewinding Diameter: 700mm (Lower) / 500mm (Upper)

Max Intermittent Speed: 60m/min

Max Full Rotation Speed: 120m/min

Intermittent Die-Cutting Length Range: 80mm - 350mm

Registration Accuracy: ±0.15mm

Power Supply: 380V, 50/60Hz, 20KW

Machine Weight: 3000KG
