M330 Plus Adhesive-side Printing/Varnish

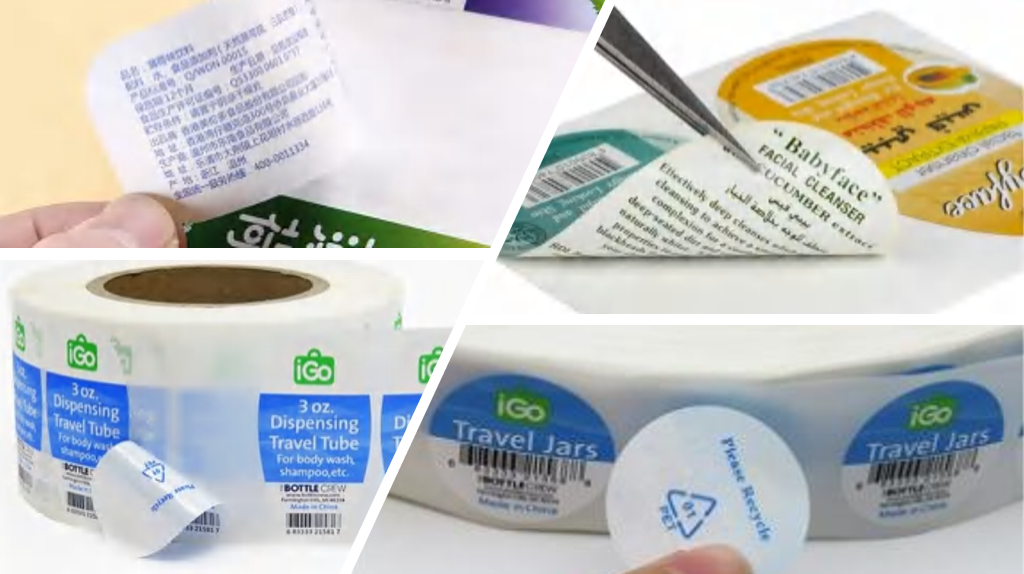

Adhesive-side printed roll-to-roll labels offer versatile solutions for numerous industries, from consumer goods like cosmetics and toys to highly regulated fields like pharmaceuticals and security.

introduce
parameter

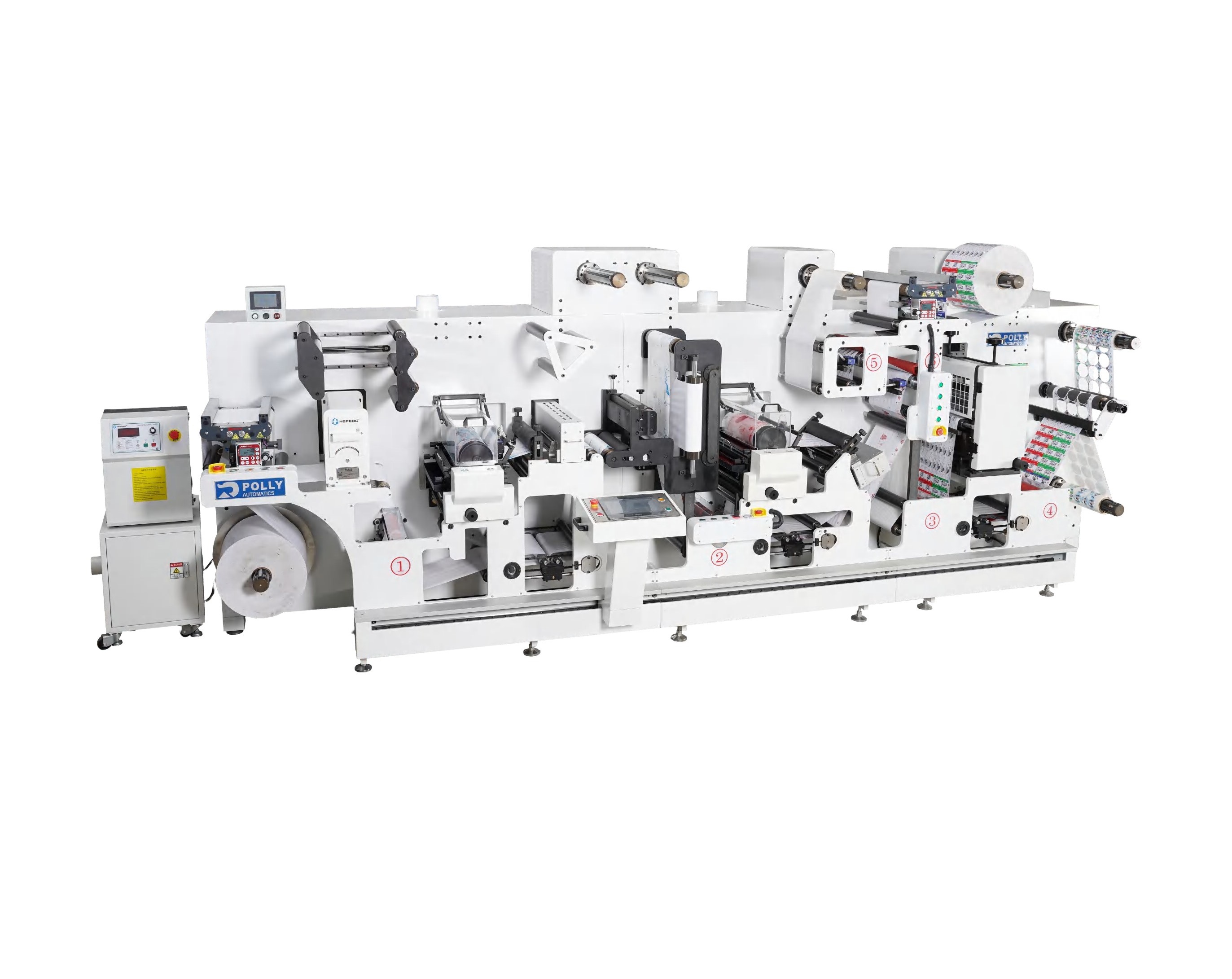

Key Features of This Machine:

✔ Buffer Unit for Delam/Relam: Provides efficient handling of web material for proper alignment.

✔ 1st Semi/Full Rotary Flexo: Used for printing, varnish application, or cold foil transfer.

✔ Turn Bar: Allows web direction change to maintain proper material flow.

✔ 2nd Semi/Full Rotary Flexo: Provides additional printing capabilities.

✔ Registration Lamination: Ensures accurate alignment during the lamination process.

✔ Unwinder/Rewinder: Controls material feeding and rewinding for continuous operation.

✔ Web Guiding Unit: Maintains proper web tension and alignment throughout the process.

✔ Semi/Full Rotary Die-Cutting Station: Performs die-cutting for custom shapes and sizes.

✔ Waste Rewinder: Collects waste material from the production process.

✔ Rewind: Rewinds finished products or materials onto rolls for storage or further processing.

Specification:

Maximum Unwind Outer Diameter: 700 mm

Maximum Rewind Outer Diameter: 700 mm (500 mm for upper rewind)
Maximum Waste Outer Diameter: 600 mm

Maximum Web Width: 340/430/530 mm

Maximum Die Cutting Width: 330/420/520 mm

Maximum Speed (Intermittency): 50-60 m/min
Semi Rotary Die Cutting Repeat Range: 50-300 mm/80-400 mm

Registration Accuracy: ± 0.15 mm

Power supply: 380V, 3Phase, 35 KW
