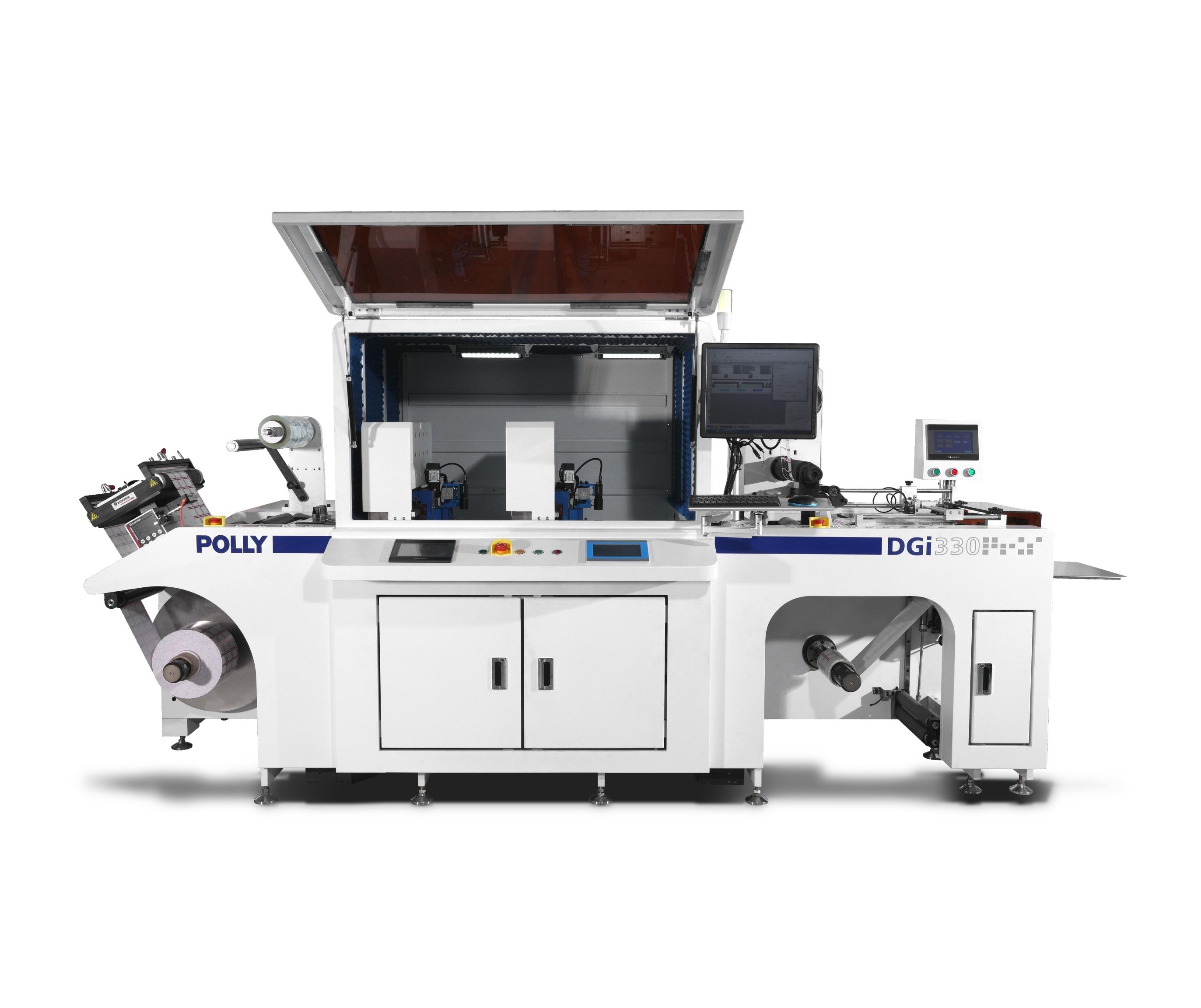

Digital Plotter DGi-330/420

The printed label materials produced by the DGI-330/420, available in both roll-to-roll and roll-to-sheet formats, are highly versatile and widely used across a range of industries, including electronics, cosmetics, packaging, pharmaceuticals, transportation, toys, logistics, security, and more, providing flexible solutions for various labeling requirements.

introduce
parameter

DGi-330 utilizes an advanced security-grade CCD registration system that efficiently captures the position data of color marks. This system ensures the completion of both horizontal and vertical registration in a single pass. By incorporating multiple color marks, it can calculate the shrinkage ratio of any abnormal labels based on the position data and AI-driven depth analysis, enabling automatic real-time adjustments for enhanced accuracy and efficiency.

Key Features of This Machine:

✔ Equipped with two cutting heads and six sets of blades, including a lamination unit.

✔ Features a CCD intelligent registration system with an accuracy of up to 0.05mm.

✔ Automatically adjusts distortion rates.

✔ Supports QR code import for job files, enabling automatic, continuous processing.

✔ Integrated drawing analysis system with automatic knife distance control.

✔ Utilizes an all-servo motor control system.

✔ Includes a PC, monitor, keyboard, and mouse.

Specification:

Maximum Unwind Outer Diameter: 700 mm

Maximum Rewind Outer Diameter: 700 mm
Maximum Waste Outer Diameter: 600 mm

Maximum Web Width: 340/430 mm

Maximum Die Cutting Width: 330/420 mm
Maximum speed: 2000 mm/s
Maximum Cutting Repeat Length : 700 mm

Power supply: 380V, 3Phase, 15 KW
File format: AI/PLT/DXF
